Basshead Garage Wattmeter – Measure Wattage / Impedance / Voltage BHG-WM
$99.99 Buy It Now or Best Offer
free,30-Day Returns
Seller Store bigjeffaudio
(23291) 99.5%,
Location: Ocala, Florida 344**, US
Ships to: US,
Item: 166895684758
Country/Region of Manufacture:Croatia
BHG-WM:BHG-WM
Type:Meter
Model Number:BHG-WM
Basshead Garage:Basshead Garage
MPN:BHG-WM
Manufacturer:Basshead Garage
Product Type:Meter
condition:New
Big Jeff Audio Will Ship Your Order In 24-48 Business Hours
Basshead Garage Wattmeter – Measure Wattage / Impedance / Voltage BHG-WM
Categories
- 3.5 Aux
- All Things Jeep
- Amp Wire Kits
- Amplifiers
- Auto Accessories
- Back Up Cameras
- Bass Blockers
- Bass Knobs
- Bass Processor
- Batteries-Caps
- Battery Charger
- Bluetooth
- Brands We Carry
- Car Security Keyless Start
- CCTV Hard Drives
- CCTV Security
- Close Out
- Coaxial speakers
- Component Speakers
- Connectors
- Crossovers
- Diaphragms
- DJ – PA Speakers
- Equalizers
- Fuse Holders
- Fuses
- Golf Cart
- Head Units
- Hi to Low
- Home Audio
- Installation Supplies
- LED Lighting
- Marine Power Sports
- Merchandise
- Motorcycle
- Open Box
- Power Ground Wire
- Pre Fab Speaker Boxes
- Primary Remote Wire
- Pro Audio Highs
- Pro Audio Speakers
- Radar Detectors
- RCA Cables
- Recone Kit
- Sound Dampening
- Speaker Adapters
- Speaker Grills
- Speaker Package
- Speaker Packages
- Speaker Ring Spacers
- Speaker Wire
- Stash Cans
- Sub Woofer Packages
- Sub Woofers
- Surveillance Package
- Tools
- Tweeter/Horn Amp Combos
- Vehicle Media
- Other items
Description
Basshead Garage Wattmeter – Measure Wattage / Impedance / Voltage BHG-WM
This listing includes:
- (1) BHG Wattmeter

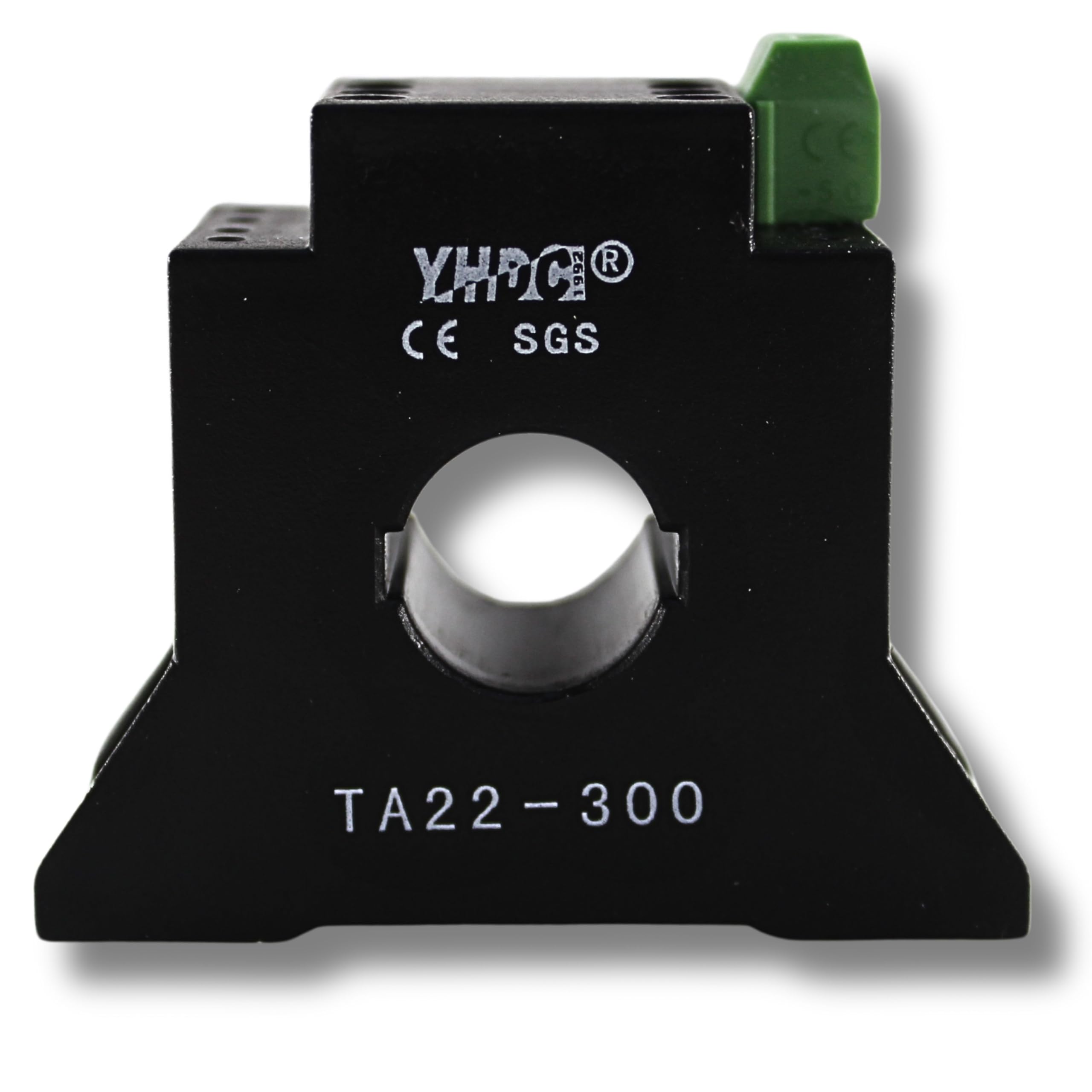

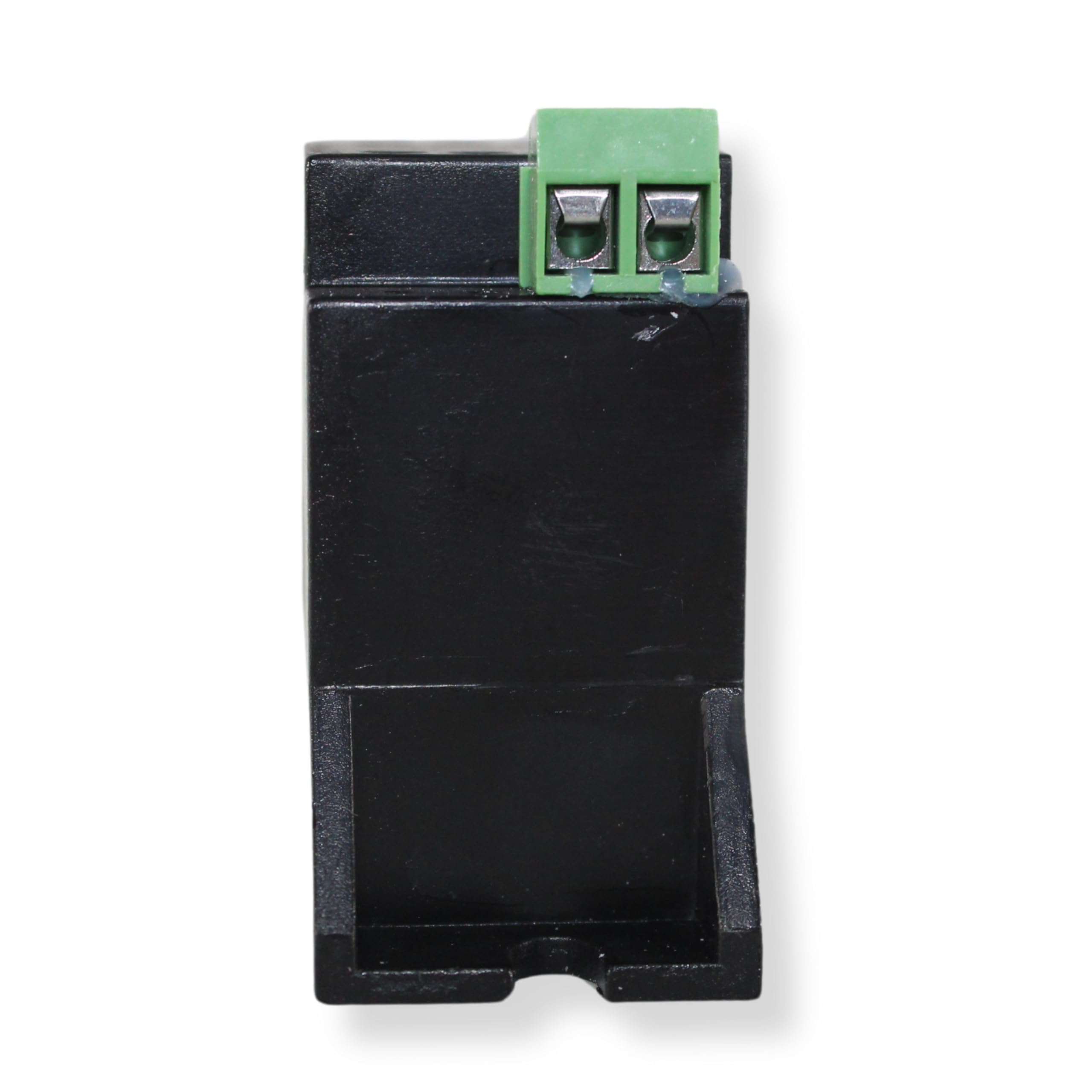

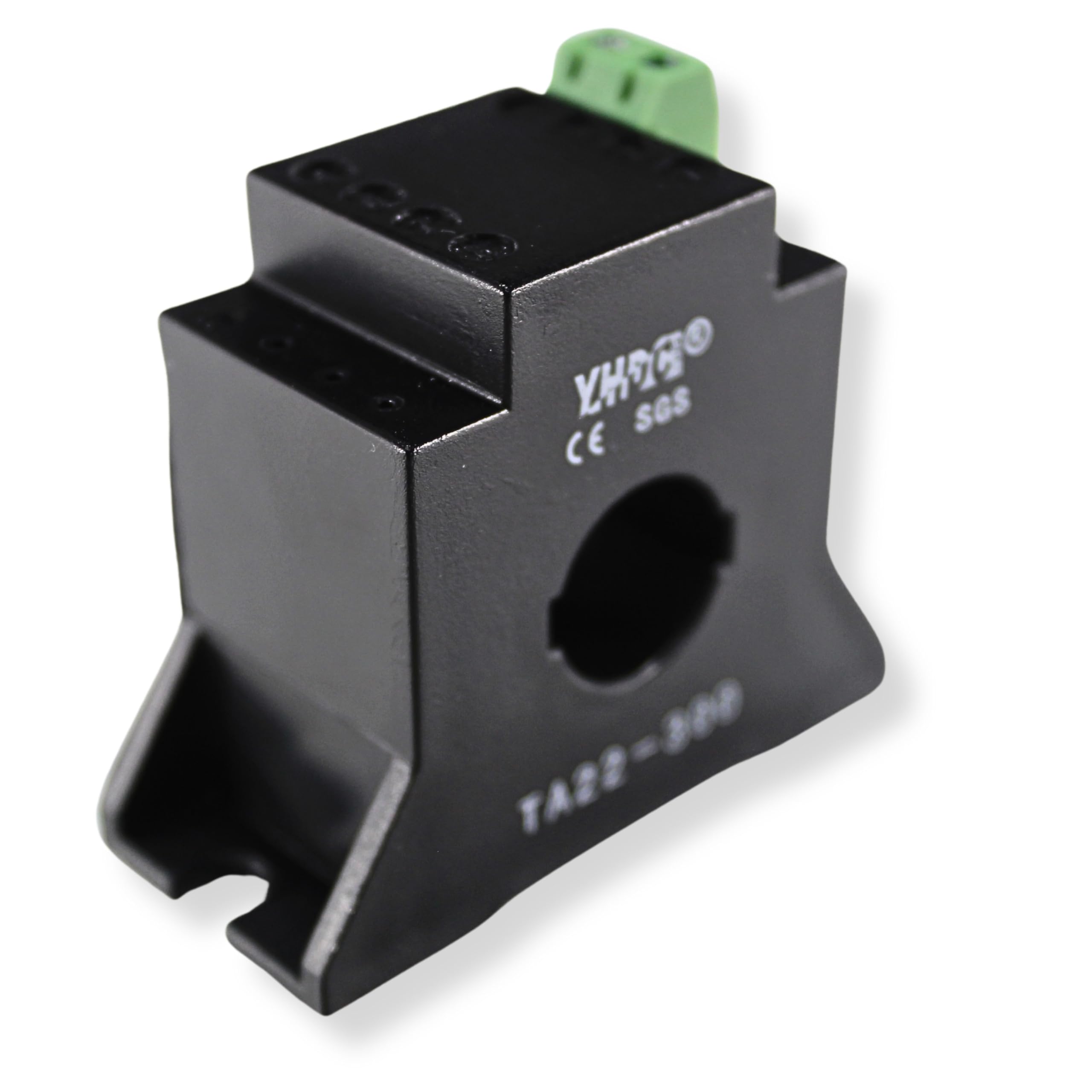

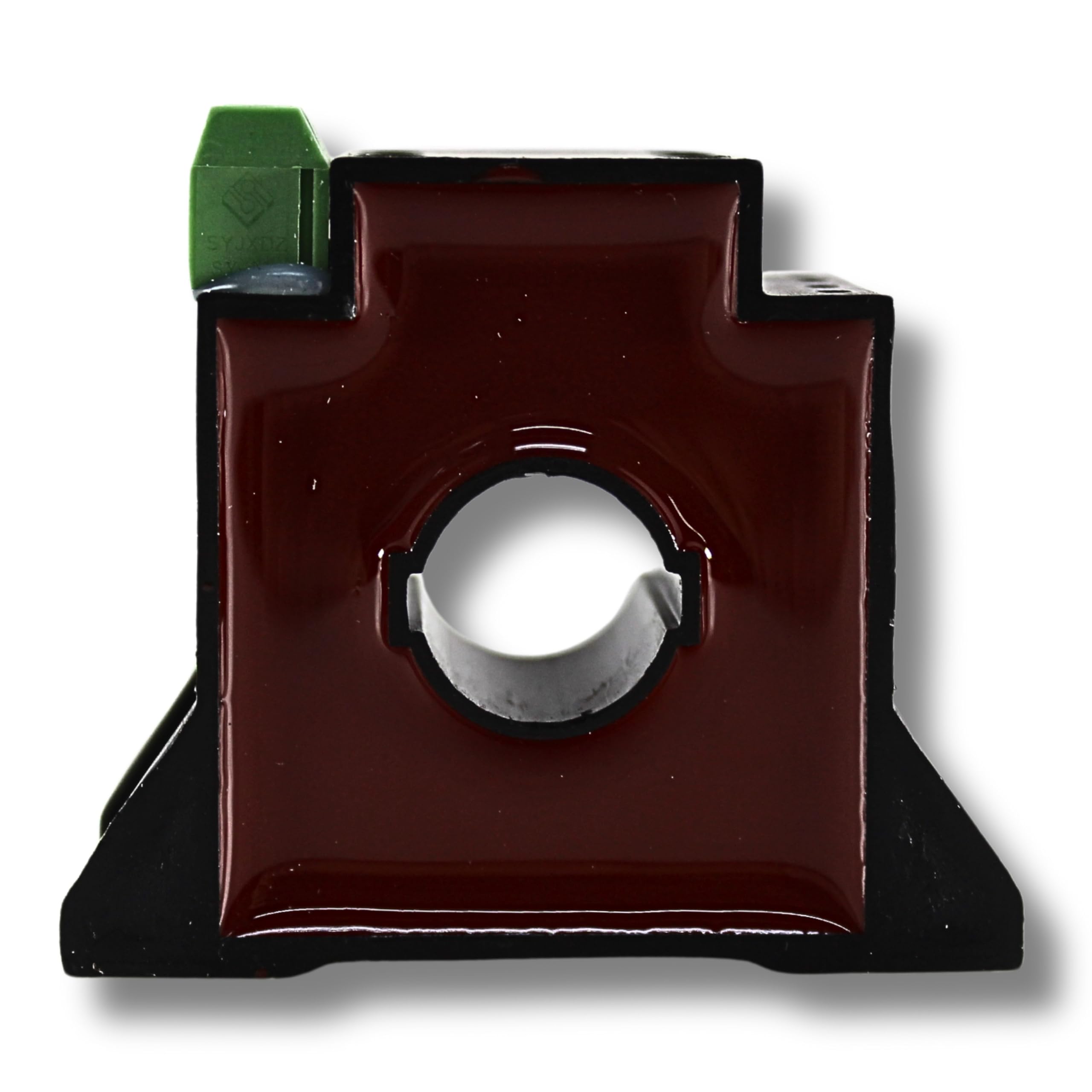

- (1) 150A Current Transformer

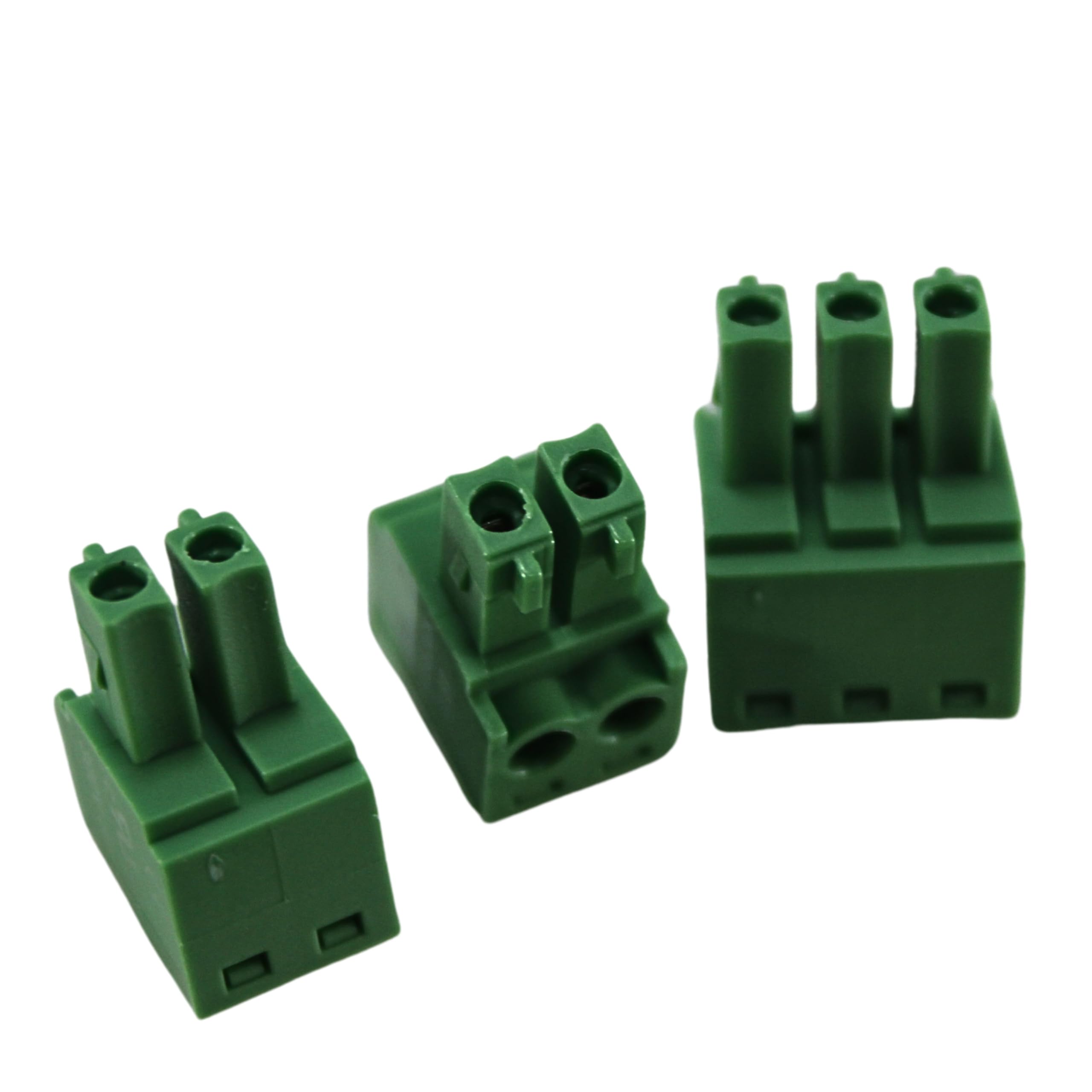

- (1) 3.81mm 3-Pin Connector
- (2) 3.81mm 2-Pin Connectors
Introducing the Wattmeter by BASSHEAD Garage. This device accurately measures true amplifier power output (W), apparent power (VA), and the phase difference between voltage and current into reactive loads (PF). Capable of measuring AC volts (V), AC current (A), and maximum amplifier output in PEAK mode, this Wattmeter provides comprehensive insights into your audio system’s performance.
Features:
- Measure True Amplifier Power output (W)
- Measure Apparent Power (VA)
- Measure Phase Difference between Voltage and Current into reactive loads (PF)
- Measure AC Volts (V)
- Measure AC Current (A)
- Measure Max Amplifier Output with PEAK mode.
Display Modes:
- Wattage & Impedance
- Voltage & Current
- Apparent Power & Power Factor
Specifications:
- AC Voltmeter: 0 – 200 V Rms
- AC Ammeter: 0 – 150 A Rms
- Power Factor: 0.50 – 1.00
- Max Wattage: 20,000+ Watts
- Frequency range: 15 – 100 Hz

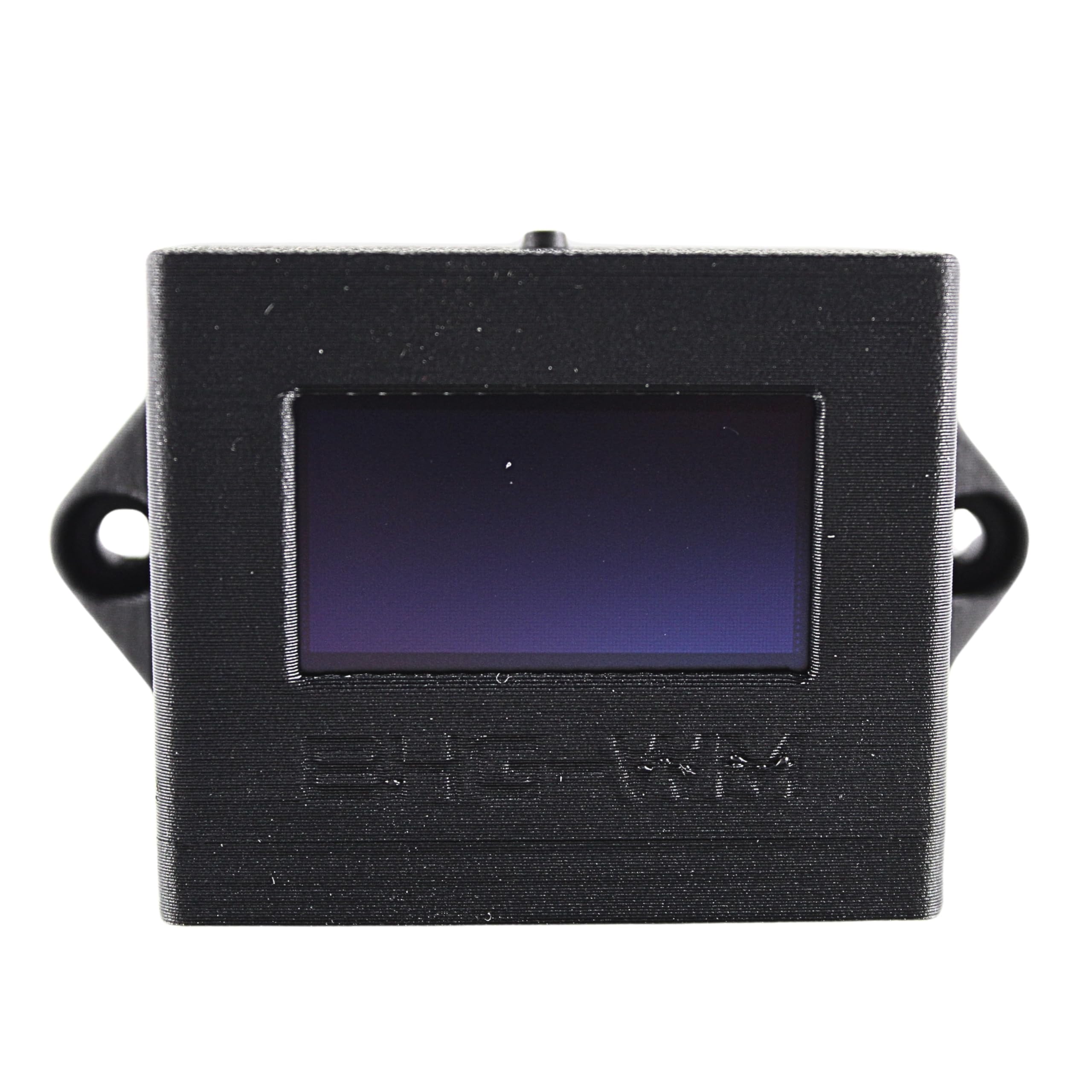

- Display: 1.3″ OLED Monochrome
- Connectors: 3.81 mm Plug connectors
- Case material: PETG Plastic
Dimensions:
- Height: 1.6″
- Width: 2.75″
- Depth: 1″

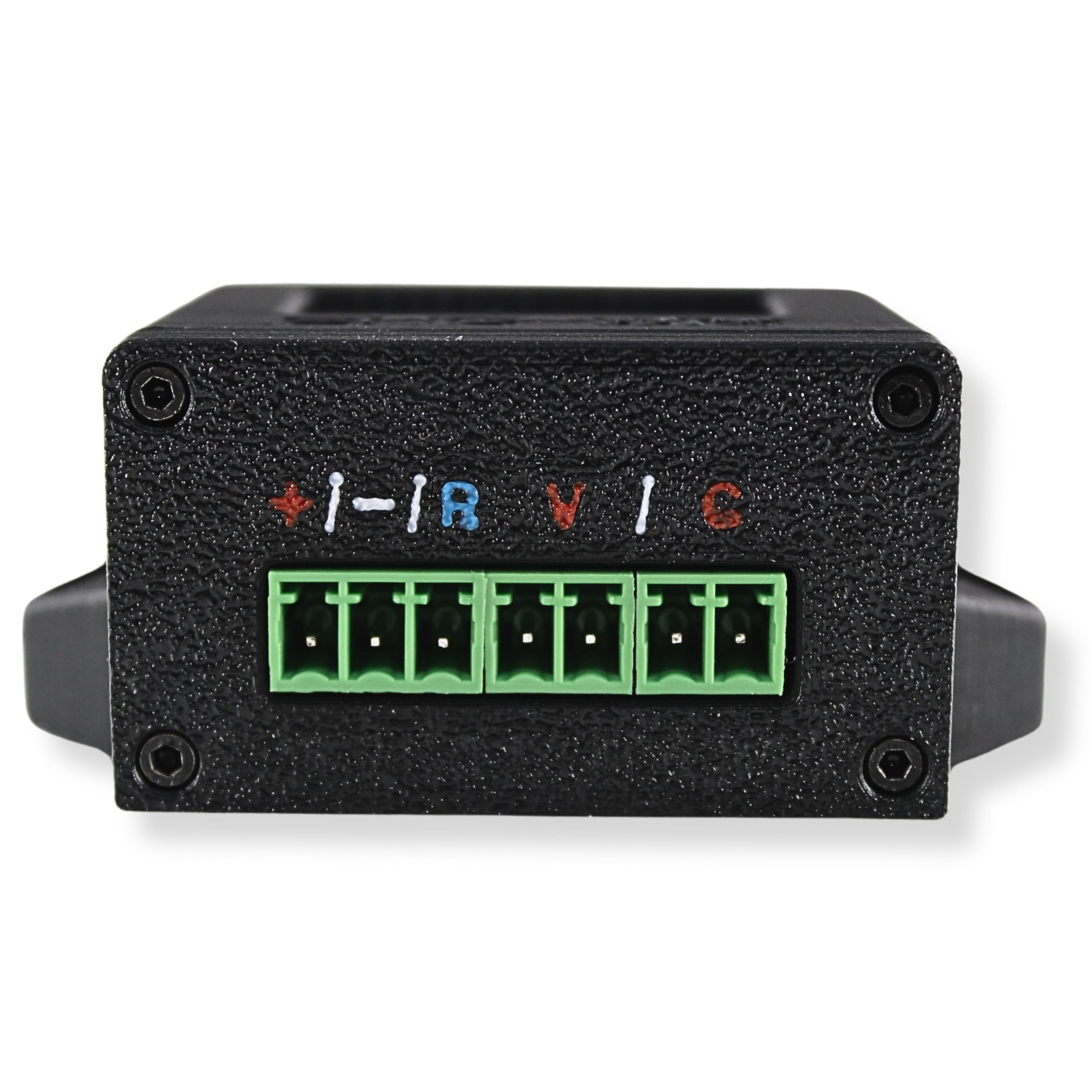

Wiring:
- + Battery Positive
- – Battery Ground
- R – Remote (Head Unit)
- V – Connect to Car Amplifier speaker output + & –
- C – Connect to the Current Transformer that goes around the positive or negative speaker wire.
